Antenna Factory 2.4GHz Directional Patch Antenna | 8dBi High-Gain | 2400–2483MHz | SMA Male

Lock On. Go Further. The 8dBi 2.4GHz Directional Patch Antenna

When range matters, the Antenna Factory 2.4GHz Directional Patch Antenna delivers. Tuned precisely for 2400MHz–2483MHz with a focused 8dBi gain, this flat panel antenna concentrates signal power in the direction you need it most — perfect for long-range FPV ground stations, RC control links, and wireless video systems.

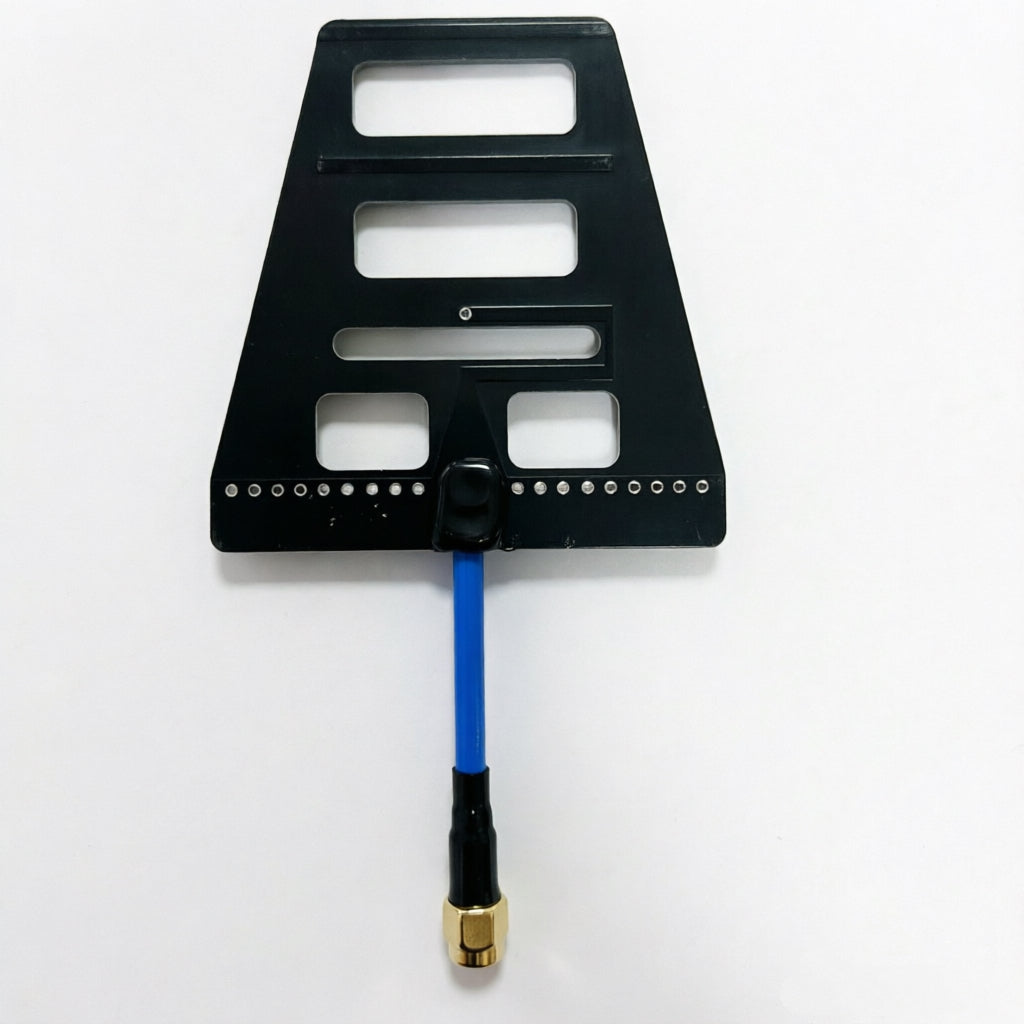

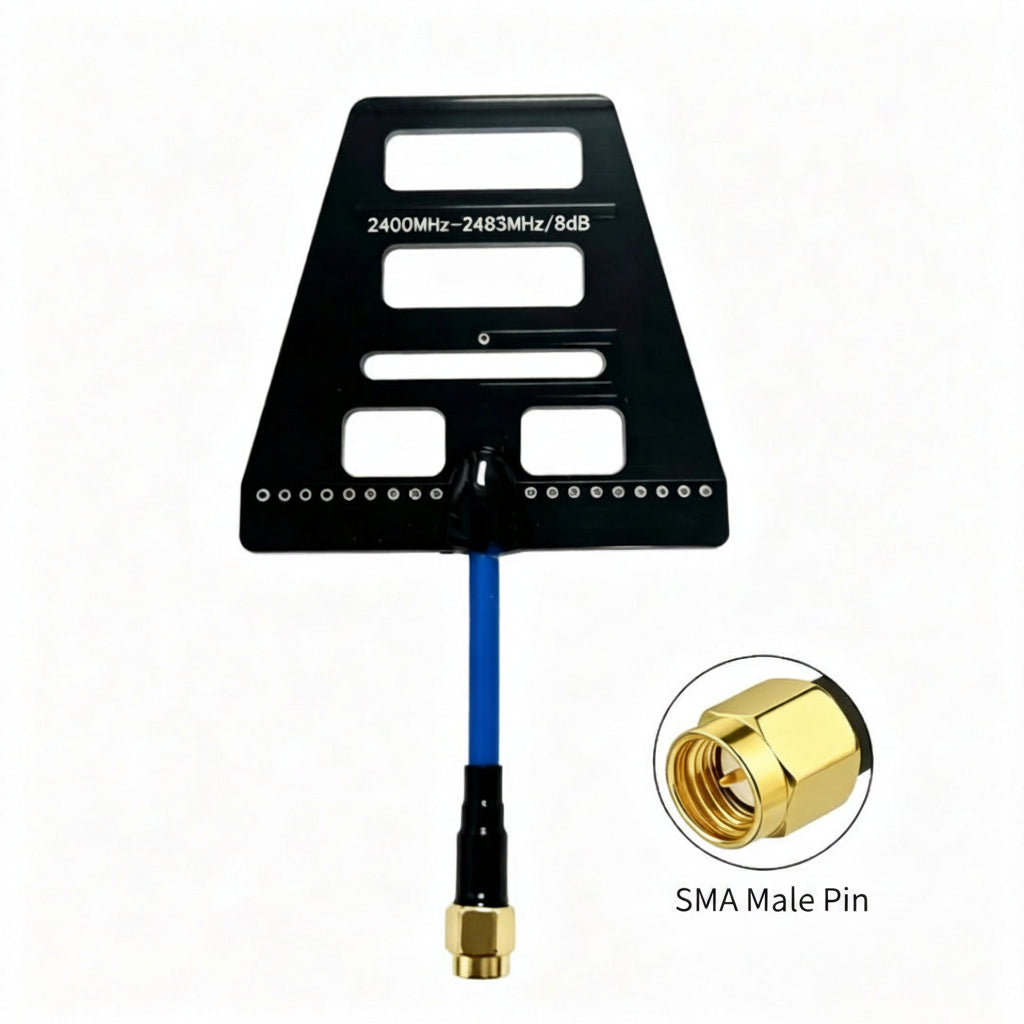

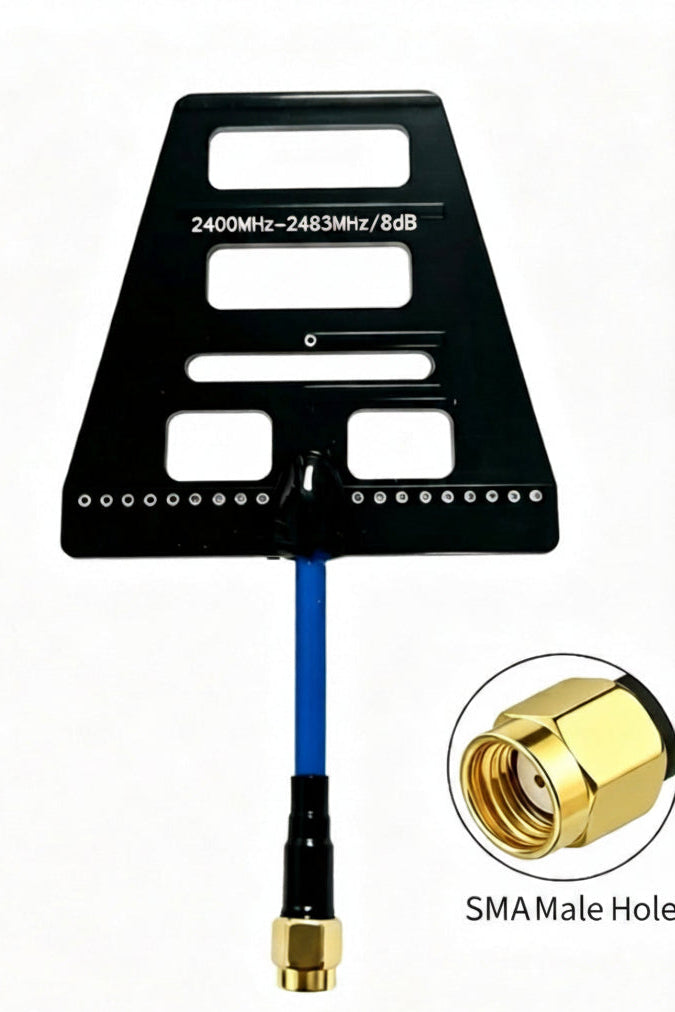

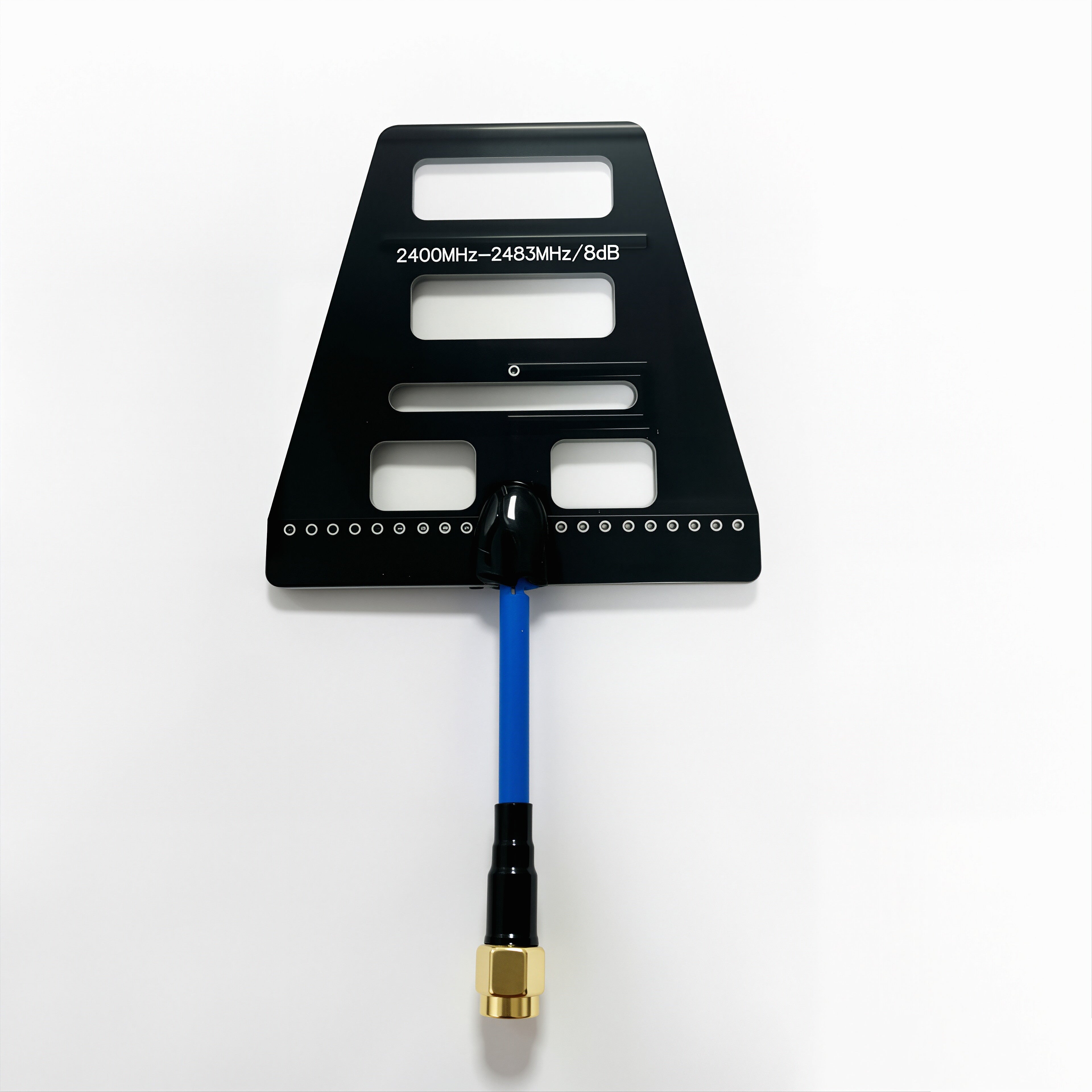

The rigid PCB panel construction with cutout slots reduces wind resistance, while the flexible blue coaxial cable and gold-plated SMA connector ensure a clean, low-loss connection to your receiver or transmitter.

Key Specifications

• Frequency: 2400MHz – 2483MHz (full 2.4GHz band)
• Gain: 8dBi directional
• Connector: SMA Male (gold-plated)
• Cable: Flexible blue low-loss coaxial cable
• Design: Flat panel PCB with wind-relief cutout slots
• Polarization: Linear
• Mount: Central knob for tripod or bracket mounting

Key Features

• High-Gain Directional Focus: 8dBi concentrates signal for extended range vs. omnidirectional antennas
• Full 2.4GHz Band Coverage: Works with ELRS, TBS Crossfire, DJI, Wi-Fi, and other 2.4GHz systems
• Low Wind Resistance: Slotted panel design reduces drag for stable ground station use
• Factory Direct: Manufactured by Antenna Factory — bulk and OEM pricing available

Ideal For

Long-range FPV ground stations, RC control link receivers, wireless video downlink systems, and any 2.4GHz application requiring extended directional range.

Package Includes

• 1× 2.4GHz 8dBi Directional Patch Antenna (SMA Male)
